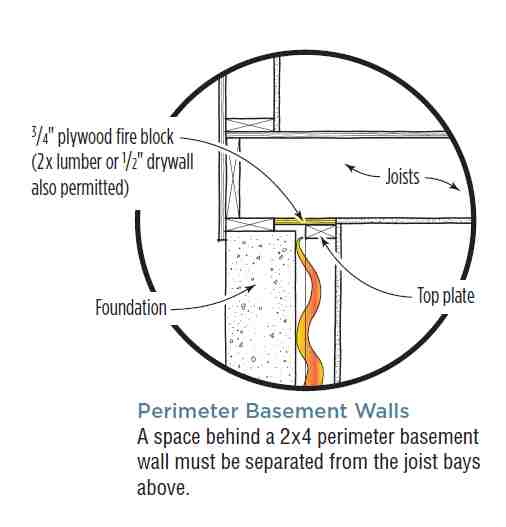

The fire can get air and move freely. (not good) When you're finishing your basement, you need to install a fire block in the gap between the top plate of your framed wall and block wall of your house foundation. Ok, same diagram but with fire blocking installed right near the top plate of the wall. Martin's basement wall insulation article is a classic that I constantly refer to when planning my basement renovation. The main thing missing from the equation, however, is fire blocking. As I understand it, fire blocking generally needs to penetrate through any foam insulation all the way to the concrete. This presents issues with thermal bridging as well as compromising the air barrier and ...

Ironically, fire blocking material does not have to be fire-proof.When you're finishing your basement, you need to install a fire block in the gap between the top plate of your framed wall and block wall of your house foundation. Ok, same diagram but with fire blocking installed right near the top plate of the wall.

Fire blocking basement diagram

Insulate your basement with fire-blocking materials. Insulators like gypsum, mineral wool and particle board are known for their fire-retardant qualities. If you're in the process of building a new house, you probably won't have to specify that you want fireproof materials, as these features are now standard. Vertical Basement Wall Fire Blocking Fire blocking basement walls is installed by nailing on strips of 5x8" or thicker O.S.B. or Drywall to the top plate and over the gap between the concrete wall and the framed wall. Horizontal Basement Wall Fire Blocking Fire blocking must also be installed every 10' horizontally along the wall, IRC 302.11.1.2. H Drive/ Team/ Inspections/ 2016 HANDOUTS/ Fire Blocking 11/09/2015 FIREBLOCKING RESIDENTIAL BUILDING INSPECTIONS DEPARTMENT www.ci.blaine.mn.us This handout is intended only as a guide and is based in part on the 2015 Minnesota State Building Code.

Fire blocking basement diagram. The block is nothing more than a 2″ x 6″ or fire-rated drywall turned flat and attached to the bottom of the first floor joists. It acts as a cap at the top of your framed basement wall to contain any fire in the wall long enough to alert the smoke alarms in the basement (see illustration at bottom). Without this blocking installed, your ... Fire block: resist free passage of fire to other conceal spaces (Intent: to isolate movement from vertical to horizontal concealed areas) Fire stop: is a opening protection in rated assemblies Fire barrier: fire-resistance-rated wall assembly of materials designed to restrict the spread of fire in which continuity is maintained. 10 6. Chimneys and fireplaces are often built with gaps between the masonry and combustible framing. This can create a channel from the basement to the roof that can contribute to a fire's rapid spread. Here, a noncombustible fireblocking material at least 1 in. deep is required to close the gap. 7. Re: Fire blocking in basement? I use 1/2" plywood rips. I find it easier to deal with than sheet rock and usually need it for soffits any way. Code calls it a draft stop and not a fire stop, so the 1/2" is fine. Nail it to the underside of the joist and tight against the mud plate. The idea is to keep fire from moving from the wall into the ...

Fire alarm system is the combination of different components such as smoke detector, heat detector, carbon monoxide detector, multi sensor detector, call points, sounders, bells, relay module, repeater, annunciator, fire control panel and other related and optional security devices designed for fire alarm control system. Fire Blocking: When framing against a basement wall as shown you will need to install fire blocking between the wall studs. The idea is to stop fire from coming up the wall and into the cavity that the duct is in. See the Fire Blocking article. Plumbing on walls: Drains sometimes run down basement walls and need to be furred around. The two ... Fire Blocking Basement. Jump to Latest Follow 1 - 20 of 21 Posts. 1; 2 ... The method in either diagram will work, I have done both. Usually the framer takes care in setting the sill plates as it makes the rest of the frame easier to keep straight and square. ... So when you place your fireblocking tight up against the sill plate and frame your ... under severe fire conditions for a prescribed period of time. Unlike fireblocks, the purpose of a firestop is to prevent the spread of fire from one compartment to another through service and utility openings in floors, ceilings, roofs, and walls.

The purpose of fire blocking is to prevent fire from spreading through the concealed spaces of a building. It works by dividing framing cavities into separate compartments, slowing the passage of flames and combustion air. In an unblocked balloon-framed building, for example, a fire that starts in the basement can rapidly travel up the stud ... I am having a disagreement with my city inspector over fire blocking. I am using 2" XPS against the concrete foundation and framing in front of that. All XPS joints tight and taped. The inspector is now saying that since the XPS is flammable, the vertical fire block required per 2003 IRC every ... Re: Fire blocking in basement? Greg Fire-blocking is a pain. Your drawing has the horiz blocking in the hardest place possible to put it. Usually what we do is cut a piece of drywall the sife of the joist bay and glue, nail or screw it to the top of the top plate extending to the wall or in your drawing carrying ot over onto the mudsill. Material for Fire Blocks. The blocks must be as wide as the wall. For a 2 x 4 wall, use a 2 x 4 block, for a 2 x 6 wall, use a 2 x 6 block; its that simple. The 2012 International Residential Code allows for the use of materials other than standard lumber, although I do not recommend any of them. Its just to easy and reliable to use 2 x 4 ...
