An OV-1 can be used to orient and focus detailed discussions. Its main use is to aid human communication, and it is intended for presentation to high-level decision-makers. The intended usage of the OV-1 includes: Putting an operational situation or scenario into context. Providing a tool for discussion and presentation; for example, aids ... OV-1 procedures 301 Creating OV-1 diagram 301 OV-2 procedures 302 Creating OV-2 diagram 302 Creating Operational Exchanges in OV-2 diagram 303 OV-3 procedures 303 Creating OV-3 table 303 OV-4 procedures 304 Creating OV-4 diagram 304 OV-5 procedures 304 Creating OV-5 Operational Activity Model diagram 305

A SV-1 can optionally be annotated with Operational Activities, Capabilities, and/or Locations originally specified in OV-2 Operational Resource Flow Description model. In this way, traceability can be established from the logical OV structure to the physical System Viewpoint structure.

Ov-1 diagram

An OV-1 High-Level Operational Concept Graphic Diagram is based on the UML Composite Structure Diagram. Since it is a bit complex, the OV-1 Free Form diagram can be used alternatively. A Concept Role here is a property for a High-Level Operational Concept element. Operational View (OV) is one of the basic views defined in the enterprise architecture (EA) of the Department of Defense Architecture Framework V1.5 (DoDAF) and is related with concept of operations.Under DODAF 2, which became operational in 2009, the collections of views are now termed 'viewpoints' and no longer views. Other enterprise architecture frameworks may or do have operational views ... OV-1 - High-Level Operational Concept Graphic. The OV-1a provides a graphical view of what the architecture is addressing and an idea of the players and operations involved. Its main use is to aid human communication, and it is intended for presentation to high-level decision-makers. The OV-1 describes a mission, class of mission, or scenario.

Ov-1 diagram. The OV-1 provides a graphical depiction of what the architecture is about and an idea of the players and operations involved. An OV-1 can be used to orient and focus detailed discussions. Its main use is to aid human communication, and it is intended for presentation to high-level decision-makers. The intended usage of the OV-1 includes: The set of documents named AV*, OV*, SV*, TV* are all part of the OOI CyberInfrastructure Architec-ture & Design (CIAD), in the structure prescribed by the DoDAF (Department of Defense Architecture Framework). Each document has a designated title, an identifier (such as AV-1) and covers a specific topic in a self-contained way. Lesson 1.1: Create an OV-01 high-level overview diagram The OV-01 High-Level diagram describes the locations, targets, assets, and organizations that are to be involved in a particular mission. Its main utility is as a facilitator of human communication, and it is intended for presentation to high-level decision makers. sponsors, and materiel developers. Figure 1 depicts the high-level (OV-1) diagram of the Joint C2 requirements management process. a. The Joint C2 requirements management process provides traceability, via the Joint C2 CDD, Requirements Prioritization and Sequencing Plan (RPSP),

OV-1a - High-Level Operational Concept Graphic. The OV-1a provides a graphical view of what the architecture is addressing and an idea of the players and operations involved. Its main use is to aid human communication, and it is intended for presentation to high-level decision-makers. The OV-1a provides a graphical, scenario-based ... The OV-1 provides a graphical depiction of what the architecture is about and an idea of the players and operations involved. An OV-1 can be used to orient and focus detailed discussions. Its main use is to aid human communication, and it is intended for presentation to high-level decision-makers. Download scientific diagram | OV-1, operational concept graphic. from publication: Service Oriented Architectures, the DoD Architecture Framework 1.5, and Executable Architectures | The Department ... The OV-1 provides a graphical depiction of what the architecture is about and an idea of the players and operations involved. An OV-1 can be used to orient and focus detailed discussions. Its main use is to aid human communication, and it is intended for presentation to high-level decision-makers. The intended usage of the OV-1 includes:

OV-1 - High-Level Operational Concept Graphic The OV-1a provides a graphical view of what the architecture is addressing and an idea of the players and operations involved. Its main use is to aid human communication, and it is intended for presentation to high-level decision-makers. The OV-1 describes a mission, class of mission, or scenario. An OV-1 High-Level Operational Concept Graphic Diagram is based on the UML Composite Structure Diagram. Since it is a bit complex, the OV-1 Free Form diagram can be used alternatively. A Concept Role here is a property for a High-Level Operational Concept element. OV-1 [classic] Use Creately's easy online diagram editor to edit this diagram, collaborate with others and export results to multiple image formats. You can edit this template and create your own diagram. Creately diagrams can be exported and added to Word, PPT (powerpoint), Excel, Visio or any other document. The OV DoDAF-described Models re-use the capabilities defined in the Capability Viewpoint and put them in the context of an operation or scenario. The OV DoDAF-described Models can be used in a number of ways, including the development of user requirements, capturing future concepts, and supporting operational planning processes.

2

In DoDAF V1.5, this was the OV-7. DIV-3: Physical Data Model: The physical implementation format of the Logical Data Model entities, e.g., message formats, file structures, physical schema. In DoDAF V1.5, this was the SV-11. OV-1: High-Level Operational Concept Graphic: The high-level graphical/textual description of the operational concept.

Grumman Ov 1 Mohawk Pdf Ebook Flight Manuals Airwingmedia Com

Creating OV-1 diagram. An OV-1 High-Level Operational Concept Graphic Diagram is based on the UML Composite Structure Diagram. Since it is a bit complex, the OV-1 Free Form diagram can be used alternatively. A Concept Role here is a property for a High-Level Operational Concept element. It represents a role that an element (the type of this ...

How To Perform A Model Based Review Mbr Innoslate

OV-1 - High-Level Operational Concept Graphic. The OV-1a provides a graphical view of what the architecture is addressing and an idea of the players and operations involved. Its main use is to aid human communication, and it is intended for presentation to high-level decision-makers. The OV-1 describes a mission, class of mission, or scenario.

Battlefield Mapping Sos Ov 1 The Operational Viewpoint 1 Ov 1 Download Scientific Diagram

Operational View (OV) is one of the basic views defined in the enterprise architecture (EA) of the Department of Defense Architecture Framework V1.5 (DoDAF) and is related with concept of operations.Under DODAF 2, which became operational in 2009, the collections of views are now termed 'viewpoints' and no longer views. Other enterprise architecture frameworks may or do have operational views ...

Mission Ov 1 On Behance

An OV-1 High-Level Operational Concept Graphic Diagram is based on the UML Composite Structure Diagram. Since it is a bit complex, the OV-1 Free Form diagram can be used alternatively. A Concept Role here is a property for a High-Level Operational Concept element.

Operational View Wikipedia

2

Grumman Ov 1 Mohawk Wikiwand

2

Chapter 9 Non Kinetic Military Avionics Ew Cw De Scada Defenses Counter Unmanned Aircraft Systems Technologies And Operations

2

Ov Rv 1 Mohawk

2

Av 1 Overview And Summary Information

2

Nato Architecture Framework Naf 3 3 Nato Operational View Training Material

2

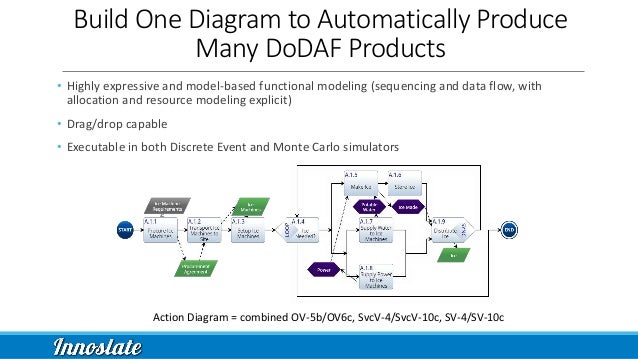

Overview Of Dodaf With Innoslate
